What is this connector for ?

Click image to enlarge
Hi

I have been looking to wire in DRLs to my Puma. I know I need an ignition live, an earth/negative and a feed from the side lights to turn-off the DRLs when the side or headlights are in use.

I had a poke around the engine bay and found this connector fitted with a plug and un-used. It was mid-way along the left-hand side of the engine bay (in line with the air intake), with two wires, one black and one white. Happily it is ignition wired.

I would appreciate help on two questions:

1/ before I use this connector, does anyone happen to know what it was supposed to be used for (just trying to ensure it will support the current and not blow out a fuse) ?
2/ can anyone advise what the connector type / description is, as I'd rather use the proper connector that simply cut the existing one off ?

Many thanks in advance

Click image to enlarge

6th Oct 2024 3:45pm

Martin
Site Admin

Member Since: 02 Apr 2007
Location: Hook Norton
Posts: 6605

2015 Defender 90 Puma 2.2 XS CSW Montalcino Red

That's the engine breather heater pipe connector, only fitted on extreme cold weather specification.

The white wire is a 5A fused ignition supply.

See here, it's "Riscaldatore tubo di sfiato motore" top middle

https://www.lrworkshop.com/wiring-diagram/...e-controls

1988 90 Td5 NAS soft top

2015 D90 XS SW

6th Oct 2024 4:52pm

happierdays

Member Since: 07 Jul 2024
Location: Worcester
Posts: 10

Brilliant. That's super helpful. I doubt I'll be doing any extreme cold weather modifications, so will connect up to that ! Thank so much

6th Oct 2024 5:00pm

PaulMc

Member Since: 17 Jan 2009
Location: Kent
Posts: 501

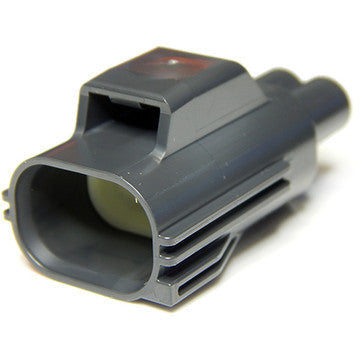

This is the mating male connector -

https://www.auto-click.co.uk/7282-5575-10

. Paul.
1989 Arles Blue 2.5TD 110 Hardtop
1999 Epsom Green Discovery II 4.0 V8i 'XS'

6th Oct 2024 5:17pm

happierdays

Member Since: 07 Jul 2024
Location: Worcester
Posts: 10

Thank you Paul ! Really appreciate the help - another project to complete next weekend

6th Oct 2024 6:11pm
