Fuel pipes

Hi all,

Does anyone know if the three pipes coming from and to the fuel pump and to the fuel filter are the same on a D2 as a 110 csw?

Thanks in advance for your help.

7th Feb 2019 11:56pm

mturri

Member Since: 13 Jul 2010
Location: All over
Posts: 33

No, alas they are not the same.

8th Feb 2019 2:59am

Pardeep

Member Since: 12 Jan 2016
Location: Birmingham
Posts: 70

Ah right ok.

On a Td5 defender can the rear pipes be replaced separately? For some reason my car has the black plug in place which I believe runs to the front but the rear have been chopped.

8th Feb 2019 11:57pm

mturri

Member Since: 13 Jul 2010
Location: All over
Posts: 33

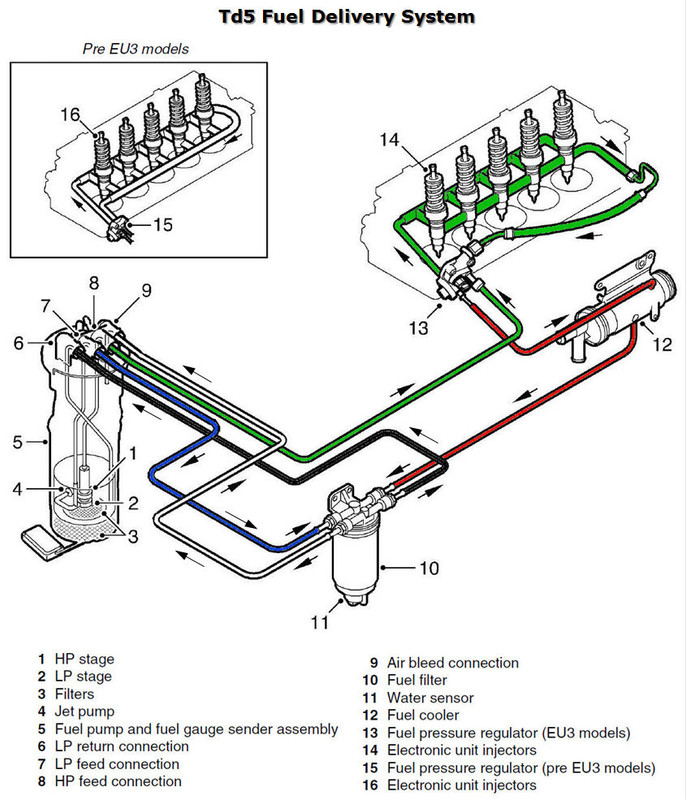

3 sets of fuel pipes on the Td5 110 (colours as per below schematic):

p/n WJP107940 Pump to filter, air bleed filter to pump (blue & white)
p/n WJP500090 Pump to engine, fuel cooler to filter (green & red)
p/n WJP107930 Filter to pump (black)

Click image to enlarge

9th Feb 2019 12:53pm

rustandoil

Member Since: 08 Sep 2012
Location: Cotswolds
Posts: 813

2005 Defender 110 Td5 XS DCPU Bonatti Grey

That drawing has been very helpful for me today, thanks for posting

26th Jun 2020 10:53am
